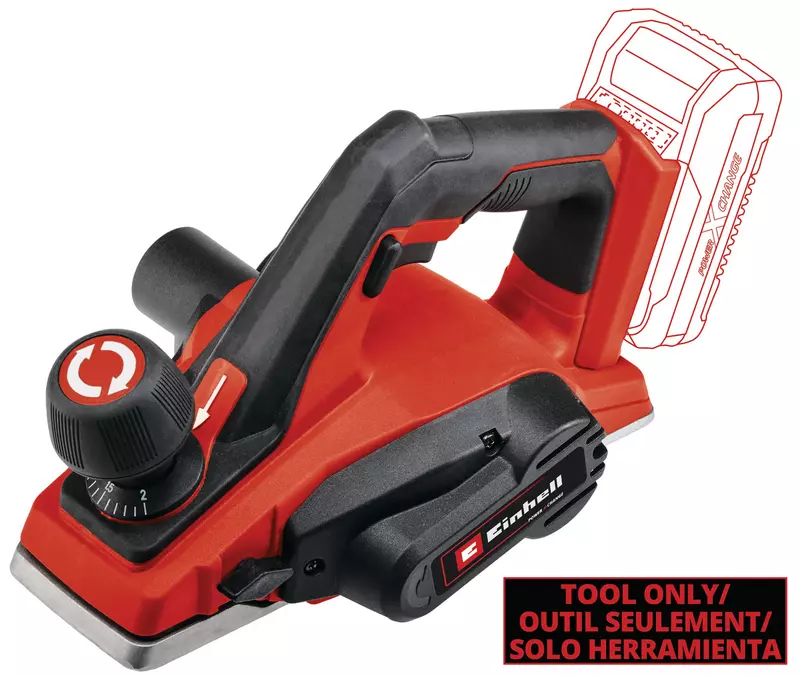

18V 3-1/4” Cordless portable planer
TE-PL 18/82 Li (tool only)
Article no.:4345401UPC: 772995017836
einhell-expert-cordless-planer-4345401-productimage-001
einhell-expert-cordless-planer-4345401-accessory-001
einhell-expert-cordless-planer-4345401-example_usage-001
einhell-expert-cordless-planer-4345401-detail_image-001
einhell-expert-cordless-planer-4345401-detail_image-002
einhell-expert-cordless-planer-4345401-detail_image-003
einhell-expert-cordless-planer-4345401-productimage-001
einhell-expert-cordless-planer-4345401-accessory-001
einhell-expert-cordless-planer-4345401-example_usage-001
einhell-expert-cordless-planer-4345401-detail_image-001
einhell-expert-cordless-planer-4345401-detail_image-002
einhell-expert-cordless-planer-4345401-detail_image-003
18V 3-1/4” Cordless portable planer

TE-PL 18/82 Li (tool only)

(0)
Article no.: 4345401 UPC: 772995017836
  • Member of the Power X-Change family, 1 x 18V battery is necessary for operation
  • Includes folding depth stop for easy production of heels
  • Large knife shaft for optimum planing results
  • Battery and charger sold separately
  • Automatic park rest protecting the planing knife and workpiece
  • Includes rip fence for straight and precise planing work
  • Powerful hand-held planer for jobs with a chip depth of up to 1/16"
  • Solid aluminum sole plates for flat results
  • Sole plate with 1 V-shaped groove for easy chamfering of edges
  • Ergonomic soft grip surfaces
  • Recommended battery for maximum results 2.0 or 2.5 Ah battery
  • Inlcudes 1 x TCT planing knife (reversible knife) for high surface quality
  • Safe and comfortable handling thanks to softgrip
See more information
Show less information
einhell-expert-cordless-planer-4345401-productimage-001
Article description

With the Einhell 3-1/4" cordless planer 4345401, the DIY enthusiast and ambitious woodworker has a powerful hand plane for applications up to 5/64" cutting depth at hand. A large cutterhead ensure optimum planing results, while the solid aluminum base plate ensures flat work results. The base plate is also equipped with a V-groove for easy chamfering of edges. Workpieces and planers are protected by the automatic parking shoe. The ergonomic handle provides a firm, secure grip and fatigue-free work. The softgrip ensures comfortable handling of the cordless planer. Included is a parallel guide for straight and precise planing work as well as a rabbet depth stop for easy production of ledges. In addition, two TCT planing knives (reversible knife) are included, to achieve a smooth, high surface finish. As a member of the high-quality Power X-Change family, all batteries in the system series can be combined with the planer. Battery and charger sold separately.

See more information
Show less information

Technical details

Motor type
Brush motor
Motor voltage
18V
No load speed
1,500 RPM
Planing width
3-1/4"
Planing depth
1/16" - 5/64"
Rabbet depth
5/16"
Product weight
5.34 lbs
Gross weight
6.0 lbs
Packaging dimensions (LxWxH)
12" x 7.5" x 7.63"
Side view of the Einhell cordless planer TE-PL 18/82 Li in parking position with the rear support stand extended.

Practical parking position

Workpieces and planers are protected by the automatic parking shoe during work breaks.

Underside of the Einhell cordless planer TE-PL 18/82 Li showing the aluminium base plate with integrated V-groove.

Effortlessly smooth surfaces

The solid aluminum base plate guarantees flat work results and is equipped with a V-groove for chamfering edges.

Split image: the upper part shows the parallel guide, the lower part the rebate depth stop of the TE-PL 18/82 Li in use.

Top precision

The scope of delivery includes a rip fence for exact planing work as well as a folding depth stop for easy production of heels.

Close-up of the installed TCT planer blade on the underside of the Einhell cordless planer TE-PL 18/82 Li.

High-quality accessories

Also included is a high-quality TCT planer blade (reversible blade).

Cut free from cables today!Limitless range thanks to Power X-Change from Einhell

No more tripping over cables, no more searching for sockets, no more issues with extension cables: The lithium-ion battery from the Power X-Change battery system from Einhell provides cordless freedom and also means it can be used far from power sockets.

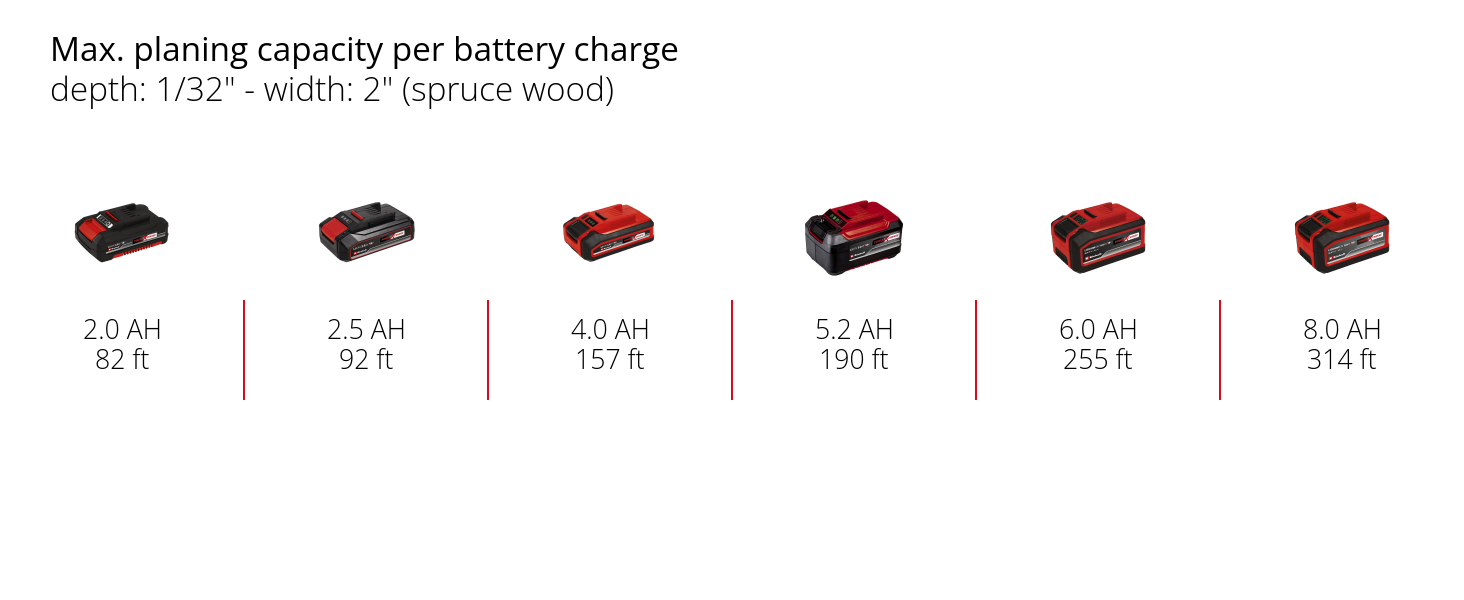

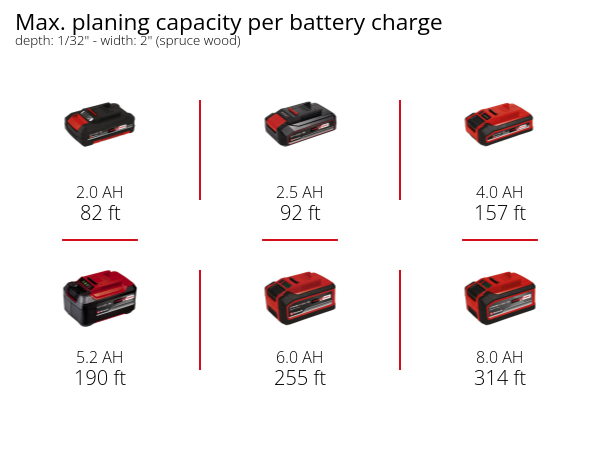

Graphic: Max. planing capacity per battery charge, depth: 1/32" - width: 2" (spruce wood), 1 x 2,0 Ah - 82 ft, 1 x 2,5 Ah - 92 ft, 1 x 4,0 Ah - 157 ft, 1 x 5,2 Ah - 190 ft, 1 x 6,0 Ah - 255 ft, 1 x 8,0 Ah - 314 ft
Graphic: Max. planing capacity per battery charge, depth: 1/32" - width: 2" (spruce wood), 1 x 2,0 Ah - 82 ft, 1 x 2,5 Ah - 92 ft, 1 x 4,0 Ah - 157 ft, 1 x 5,2 Ah - 190 ft, 1 x 6,0 Ah - 255 ft, 1 x 8,0 Ah - 314 ft
