PROFESSIONAL  18V 3/4” Professional SDS-plus cordless rotary hammer
HEROCCO 18/20 (tool only)
Article no.:4513906UPC: 772995017607
einhell-professional-cordless-rotary-hammer-4513906-productimage-001
einhell-professional-cordless-rotary-hammer-4513906-example_usage-001
einhell-professional-cordless-rotary-hammer-4513906-detail_image-001
einhell-professional-cordless-rotary-hammer-4513906-detail_image-002
einhell-professional-cordless-rotary-hammer-4513906-detail_image-003
einhell-professional-cordless-rotary-hammer-4513906-detail_image-004
einhell-professional-cordless-rotary-hammer-4513906-detail_image-005
einhell-professional-cordless-rotary-hammer-4513906-productimage-001
einhell-professional-cordless-rotary-hammer-4513906-example_usage-001
einhell-professional-cordless-rotary-hammer-4513906-detail_image-001
einhell-professional-cordless-rotary-hammer-4513906-detail_image-002
einhell-professional-cordless-rotary-hammer-4513906-detail_image-003
einhell-professional-cordless-rotary-hammer-4513906-detail_image-004
einhell-professional-cordless-rotary-hammer-4513906-detail_image-005
PROFESSIONAL 18V 3/4” Professional SDS-plus cordless rotary hammer

HEROCCO 18/20 (tool only)

(0)
Article no.: 4513906 UPC: 772995017607
  • Member of the Power X-Change family, 1 x 18V battery is necessary for operation
  • Universal SDS-plus chuck with semi-automatic function
  • Battery and charger sold separately
  • Recommended battery for maximum results 4.0 Ah battery
  • Speed electronics for fine adjustment on delicate jobs
  • Ergonomic soft grip surfaces with additional handle
  • Infinitely adjustable drilling depth stop made of solid metal
  • Low-vibration operations by vibration-cushioned main handle
  • Supplied with E-Box case
  • 4+1 functions: Drilling/impact drilling/chiseling with & w/o lock
  • Brushless motor - more power and prolonged operation
  • Comes with LED lamp to illuminate the work area
  • Magnetic bit adapter for screwing
  • Pneumatic impact mechanism for effortless drilling in concrete
See more information
Show less information
einhell-professional-cordless-rotary-hammer-4513906-productimage-001
Article description

The Einhell 3/4" SDS-Plus cordless rotary hammer 4513906 is a robust performer: for drilling, impact drilling or chiseling with or without lock, the cordless rotary hammer is a valued asset in your tool kit. The brushless motor delivers more power and provides longer operation. Designed as a member of the Power X-Change family, all the rechargeable batteries in the system series can be used without restriction in the workshop and garden tools from the system series. The impact mechanism, which has a frequency of up to 5,500 impacts per minute, makes effortless work of drilling even into concrete - with a impact power of 1.6 ft-lbs. and a drilling capacity in concrete of 3/4". Drill bits and chisels can be changed quickly thanks to the universal SDS-plus tool chuck. The variable speed trigger is finely adjustable for sensitive operation. For comfortable and tireless operation, the grip area is ergonomically designed with a softgrip and there is an isolation gasket to cushion vibration to the handle. The LED light provides optimum illumination for the work area. The product is supplied with a magnetic bit adapter and a storage E-case. The battery and charger are available separately. For optimum operation it is recommended to use a 3.0 Ah battery or higher.

See more information
Show less information

Technical details

Motor type
Brushless motor
Motor voltage
18V
No load speed (gear 1)
0 - 1,200 RPM
Impact rate (gear 1)
0 - 5,500 BPM
Impact power
1.6 ft/lbs
Max. torque
160 in/lbs
Impact strength
2.2 J
Drilling capacity in concrete
3/4"
Transmission material
Metal
Product weight
4.66 lbs
Gross weight
9.63 lbs
Packaging dimensions (LxWxH)
15.75" x 14.13" x 4.75"

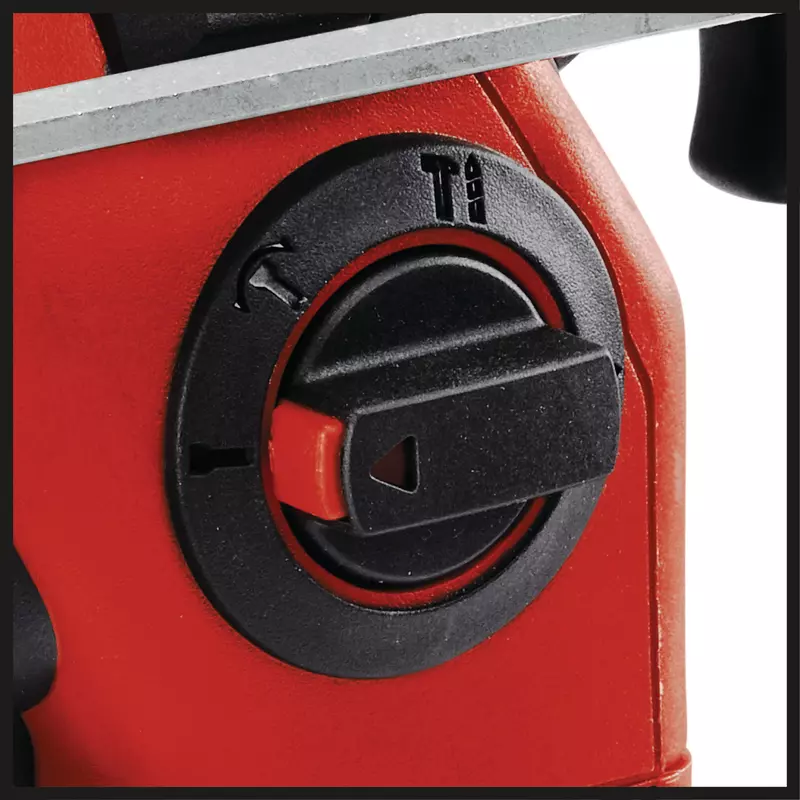

Side view of the hammer drill handle with red function selector on the Einhell HEROCCO 18/20.

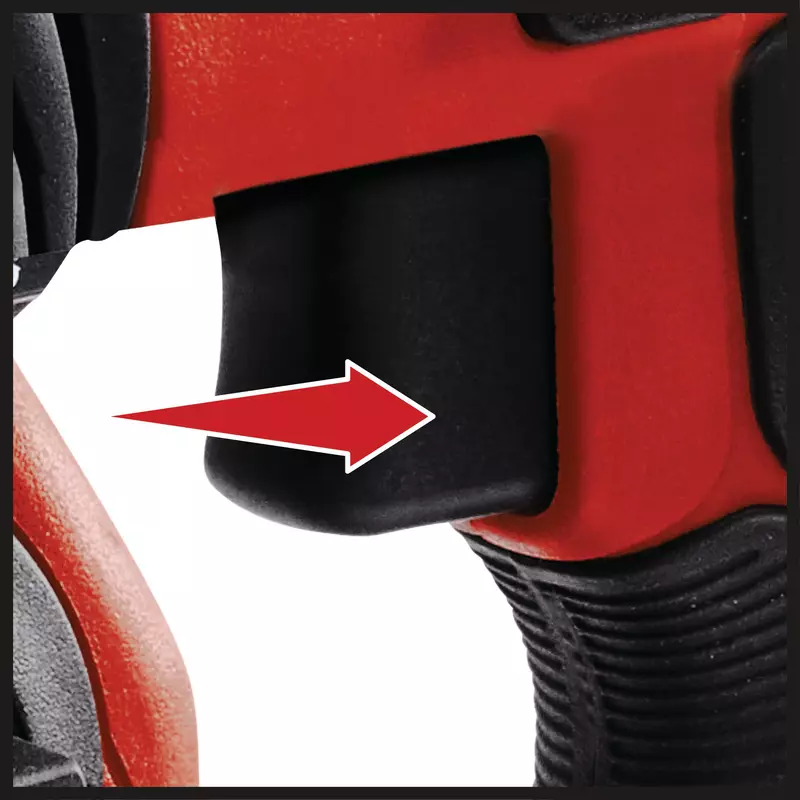

Practical speed control

With the finely adjustable electronic speed control, work can be carried out sensitively and matched to the material.

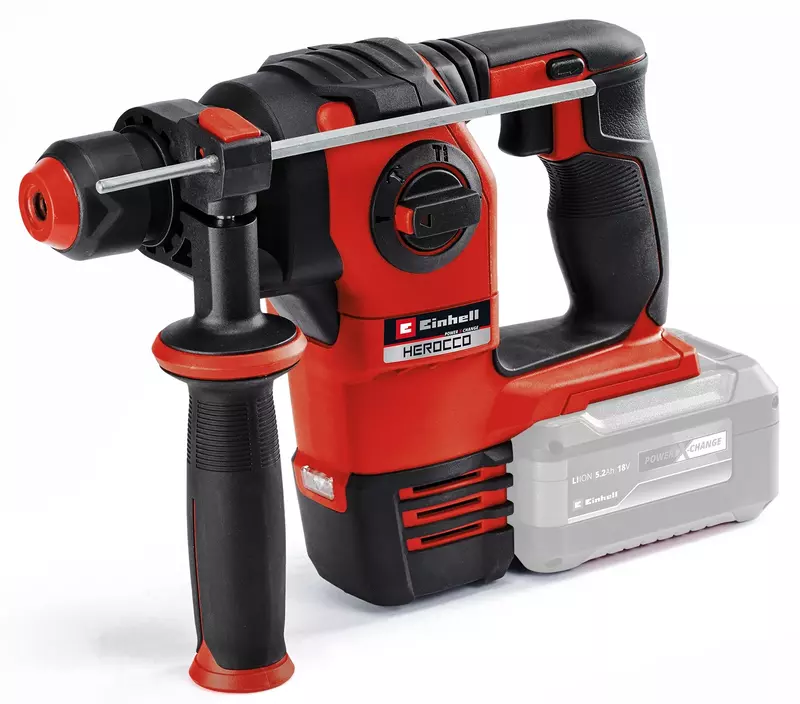

Einhell HEROCCO 18/20 cordless rotary hammer showing grip, housing, and SDS-Plus chuck.

Pneumatic impact mechanism

The pneumatic impact mechanism works with a frequency of up to 5,500 bpm and an impact force of 2.2 Joules.

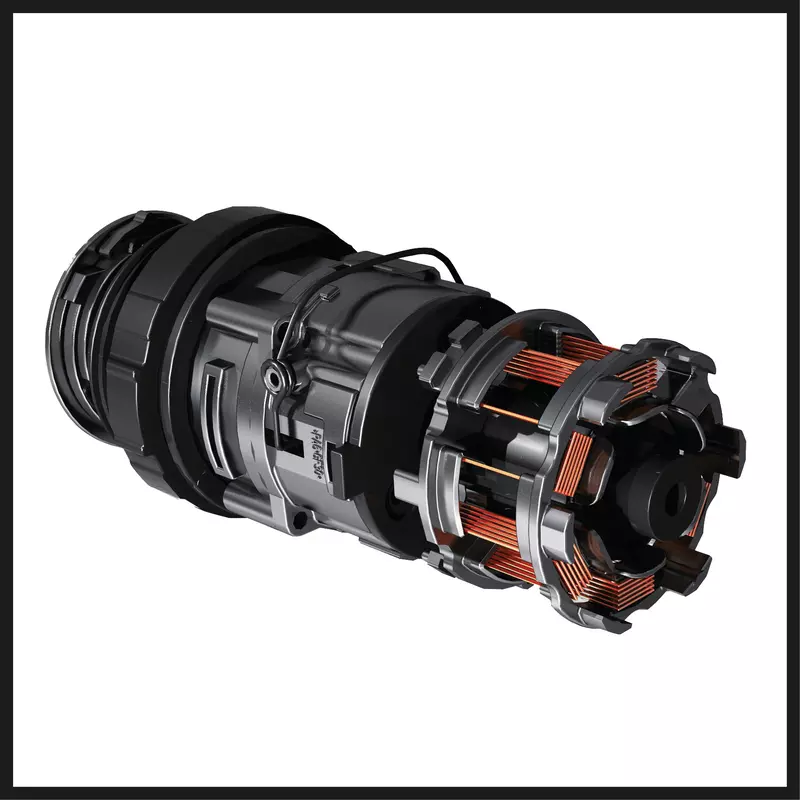

Powerful and long-lastingEinhell PurePOWER Brushless Motor

The PurePOWER brushless motor ensures maximum performance, running time and service life. The brushless motor is not subject to any wear and tear and is therefore maintenance-free. If registered online, the motor comes with a 10-year service promise.

Einhell HEROCCO 18/20 with vibration-damped handle, operated by a gloved user.

Anti-vibration handle

The anti-vibration handle protects from vibrations to ensure extremely precise work.

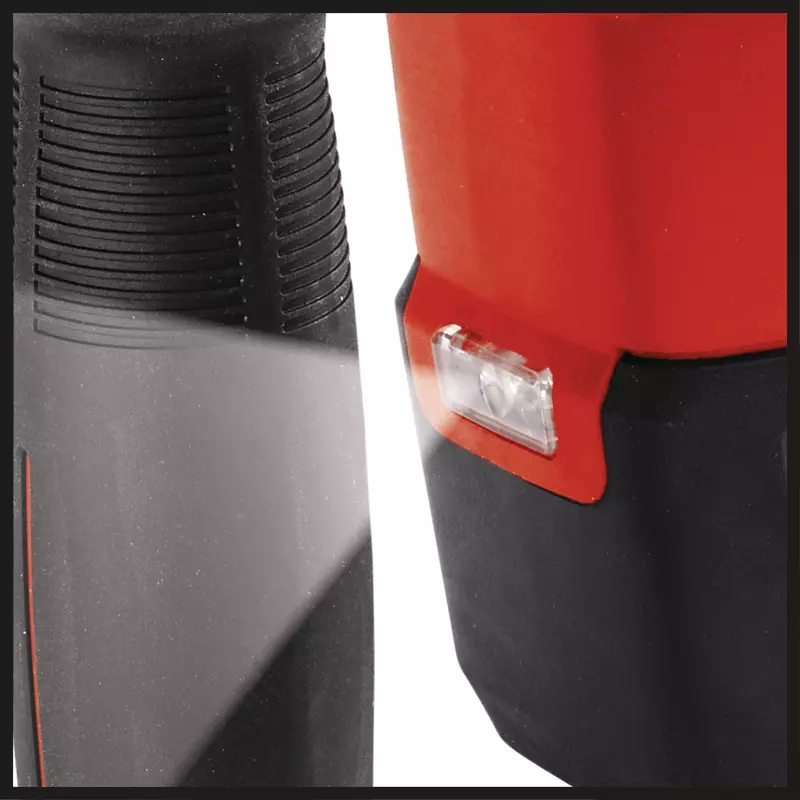

LED light on the HEROCCO 18/20 housing, illuminated during use.

Perfect view

With the integrated LED light, the HEROCCO 18/20 cordless rotary hammer can perfectly light up any work area.

HEROCCO 18/20 with battery and adjustable auxiliary handle in side view.

Ergonomic additional handle

The ergonomic additional handle with softgrip surfaces provides firm and secure handling.

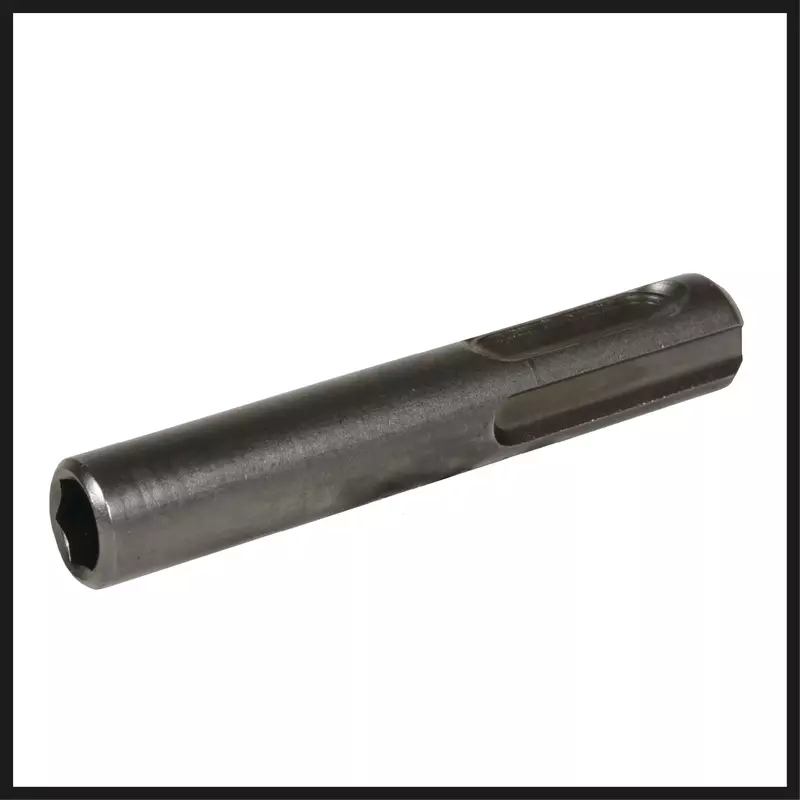

SDS-plus bit adapter being inserted into the HEROCCO 18/20 tool chuck.

SDS-Plus tool holder

The HEROCCO 18/20 is equipped with a universal SDS-Plus tool holder with semi-automatic operation.

4 in 1: (Hammer) drilling & chiselling with/without fixing

With its reliable performance, the HEROCCO 18/20 Einhell cordless rotary hammer is a sought-after all-rounder around the house, workshop and garden. When chiselling, tiles and bricks don't stand a chance against the power of the HEROCCO 18/20. And even concrete and granite cannot withstand its drill

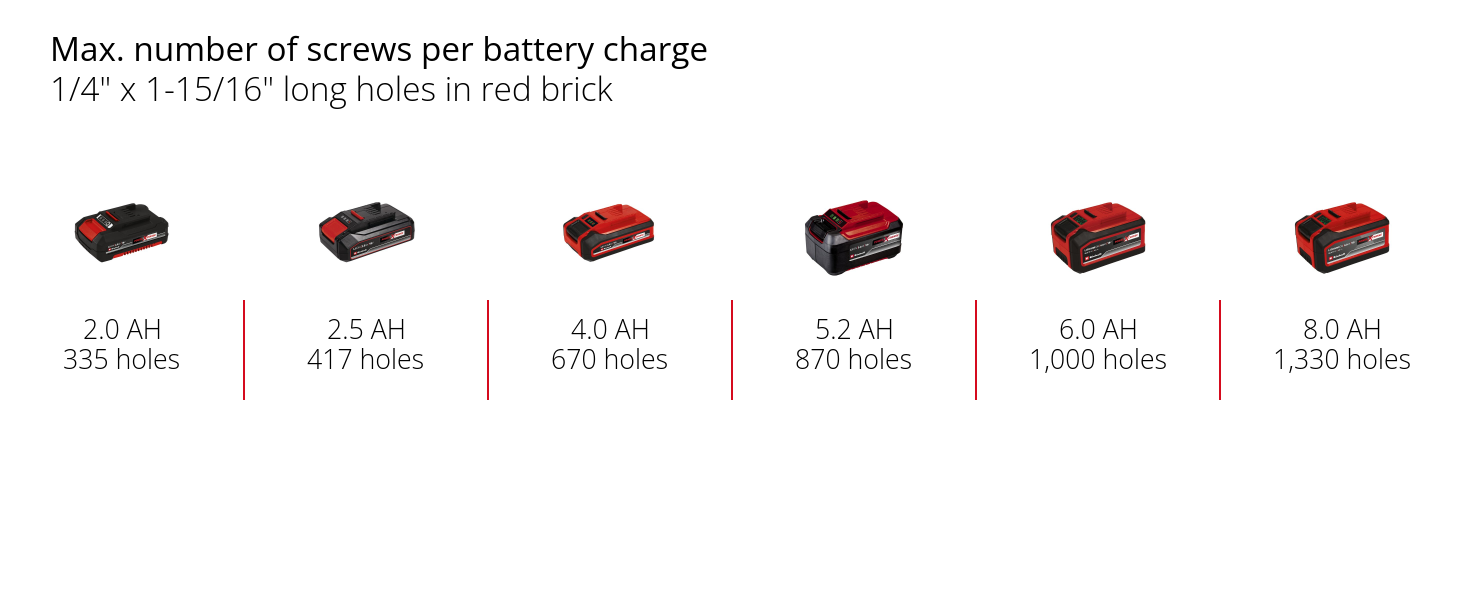

Graphic: Max. number of screws per battery charge, 1/4" x 1-15/16" long holes in red brick, 1 x 2,0 Ah - 335 holes, 1 x 2,5 Ah - 417 holes, 1 x 4,0 Ah - 670 holes, 1 x 5,2 Ah - 870 holes, 1 x 6,0 Ah - 1,000 holes, 1 x 8,0 Ah - 1,330 holes

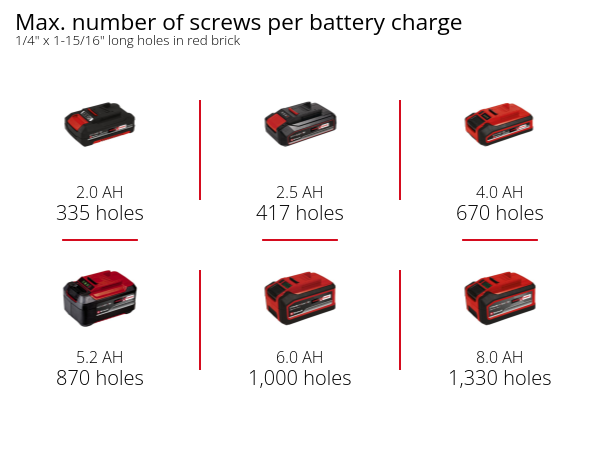

Graphic: Max. number of screws per battery charge, 1/4" x 1-15/16" long holes in red brick, 1 x 2,0 Ah - 335 holes, 1 x 2,5 Ah - 417 holes, 1 x 4,0 Ah - 670 holes, 1 x 5,2 Ah - 870 holes, 1 x 6,0 Ah - 1,000 holes, 1 x 8,0 Ah - 1,330 holes
