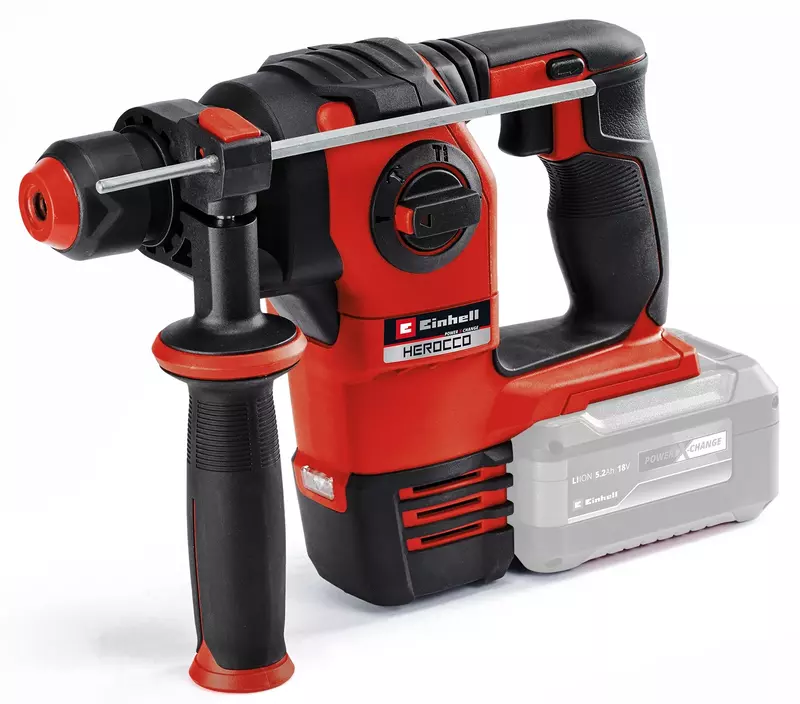

Cordless Rotary Hammer - Brushless

HEROCCO 18/20; EX; NA

Article no.: 4513906 UPC: 772995017607
  • Member of the Power X-Change family, 1 x 18V battery is necessary for operation
  • Universal SDS-plus chuck with semi-automatic function
  • Battery and charger sold separately

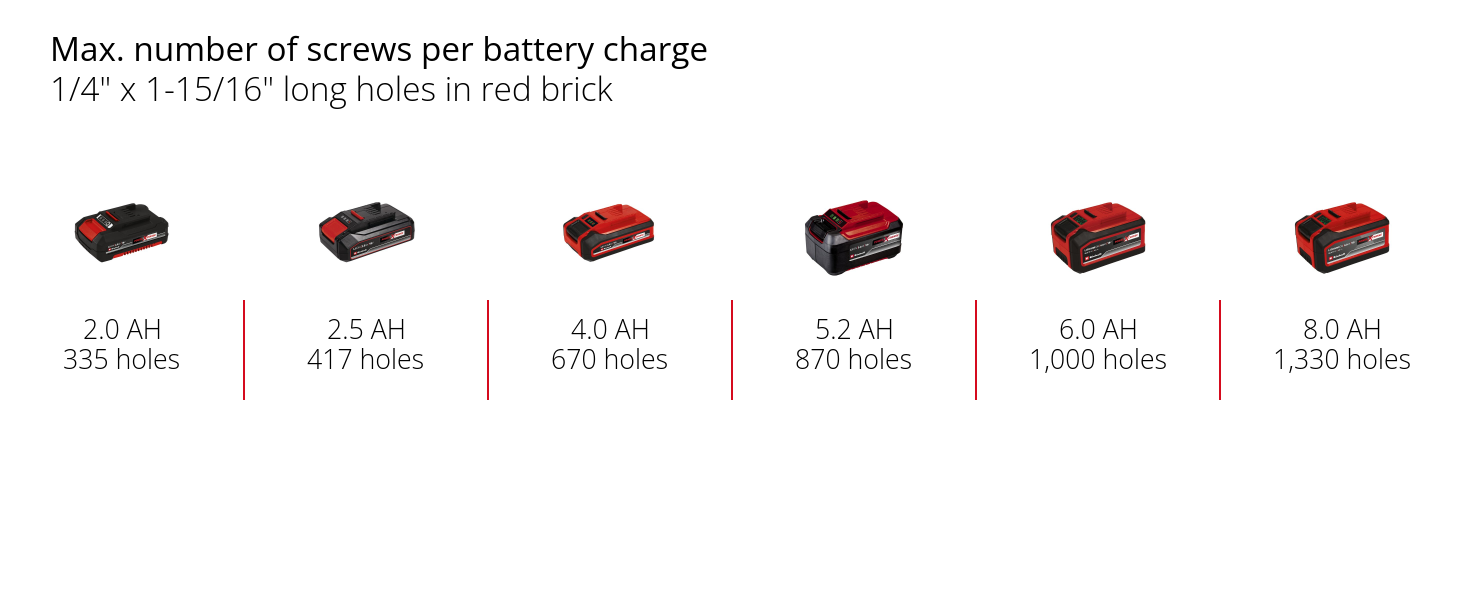

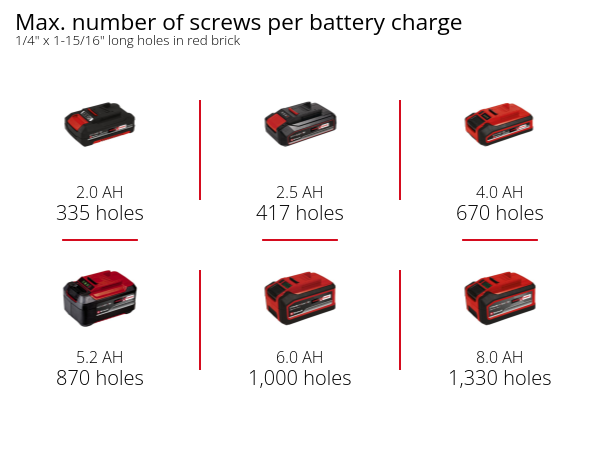

  • Recommended battery for maximum results 4.0 Ah battery
  • Speed electronics for fine adjustment on delicate jobs
  • Ergonomic soft grip surfaces with additional handle
  • Infinitely adjustable drilling depth stop made of solid metal
  • Low-vibration operations by vibration-cushioned main handle
  • Supplied with E-Box case

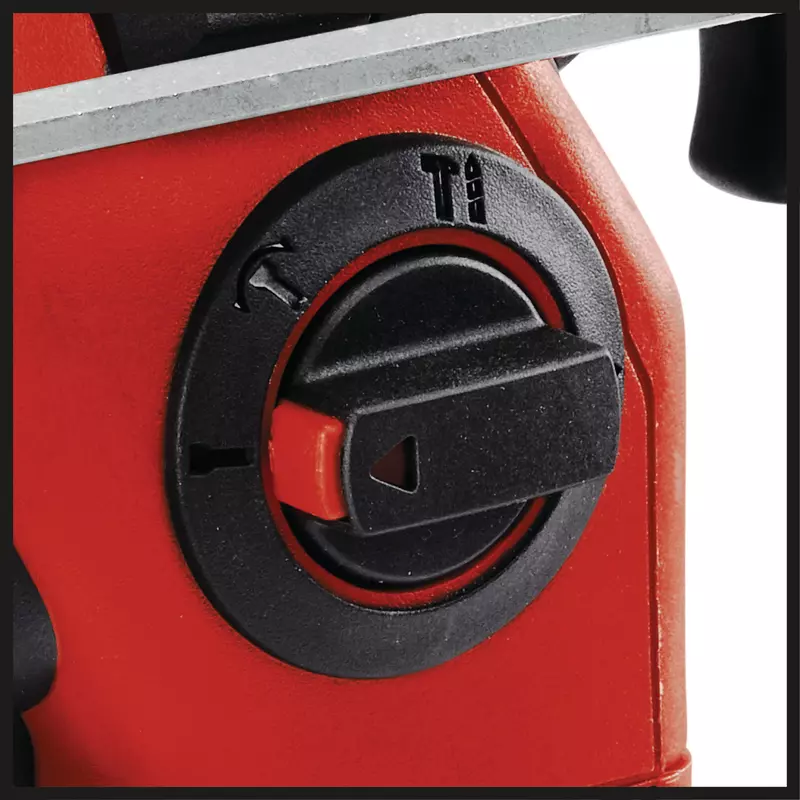

  • 4+1 functions: Drilling/impact drilling/chiseling with & w/o lock

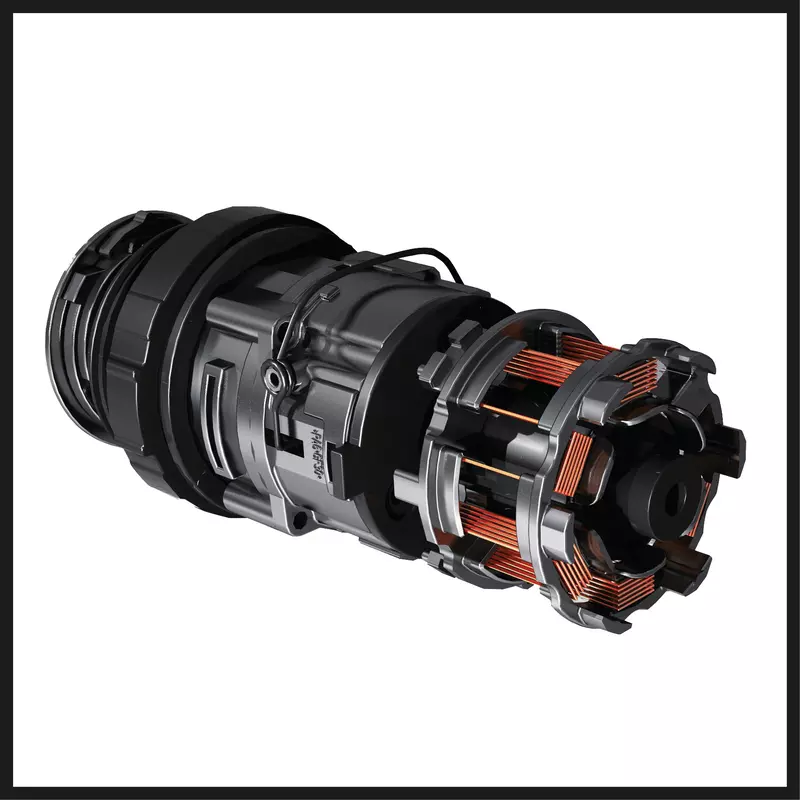

  • Brushless motor - more power and prolonged operation

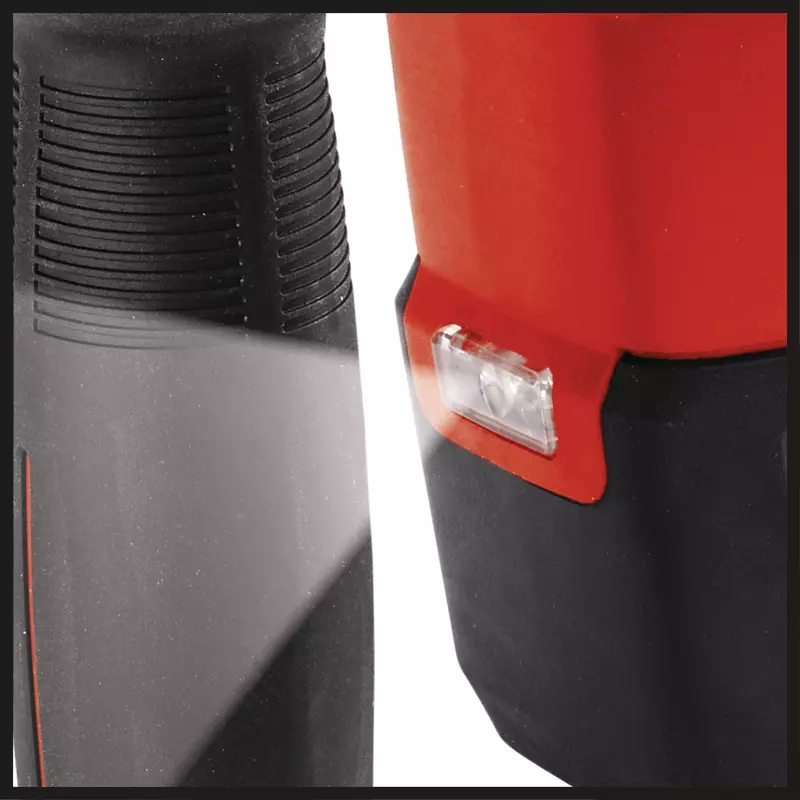

  • Comes with LED lamp to illuminate the work area

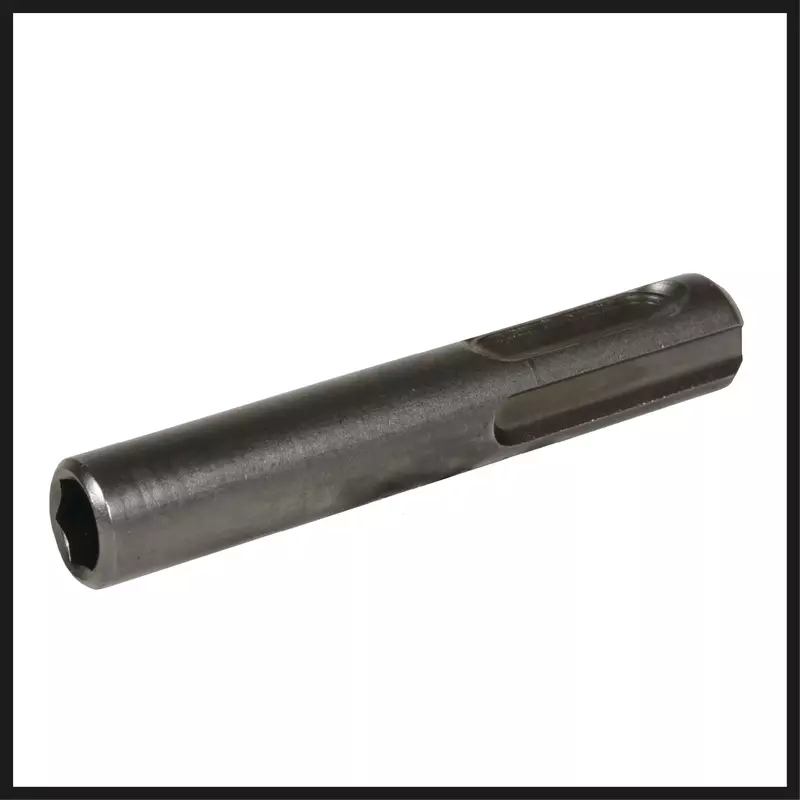

  • Magnetic bit adapter for screwing
  • Pneumatic impact mechanism for effortless drilling in concrete
See more information
einhell-professional-cordless-rotary-hammer-4513906-productimage-101
Article description

The Einhell 3/4" SDS-Plus cordless rotary hammer 4513906 is a robust performer: for drilling, impact drilling or chiseling with or without lock, the cordless rotary hammer is a valued asset in your tool kit. The brushless motor delivers more power and provides longer operation. Designed as a member of the Power X-Change family, all the rechargeable batteries in the system series can be used without restriction in the workshop and garden tools from the system series. The impact mechanism, which has a frequency of up to 5,500 impacts per minute, makes effortless work of drilling even into concrete - with a impact power of 1.6 ft-lbs. and a drilling capacity in concrete of 3/4". Drill bits and chisels can be changed quickly thanks to the universal SDS-plus tool chuck. The variable speed trigger is finely adjustable for sensitive operation. For comfortable and tireless operation, the grip area is ergonomically designed with a softgrip and there is an isolation gasket to cushion vibration to the handle. The LED light provides optimum illumination for the work area. The product is supplied with a magnetic bit adapter and a storage E-case. The battery and charger are available separately. For optimum operation it is recommended to use a 3.0 Ah battery or higher.

Technical details

Motor typeBrushless motor
Motor voltage18V
No load speed (gear 1)0 - 1,200 RPM
Impact rate (gear 1)0 - 5,500 BPM
Impact power1.6 ft/lbs
Max. torque160 in/lbs
Impact strength2.2 J
Drilling capacity in concrete3/4"
Transmission materialMetal
Product weight4.66 lbs
Gross weight9.63 lbs
Packaging dimensions (LxWxH)15.75" x 14.13" x 4.75"
